CIS type Line Scan Camera

CIS type Line Scan Camera
CIS type Line Scan Camera

Retrofit Line Scan Cameras for Machine Vision – Slim Design
with High-Precision Imaging

CIS-based Line Scan Cameras are compact industrial imaging devices that integrate LED illumination, optics, and image sensors into a single Contact Image Sensor (CIS) architecture.
This fully integrated optical design minimizes alignment requirements, reducing installation time and system complexity while enabling stable inspection across a wide range of materials.

Canon Components’ IDC Series delivers high-precision, low-distortion imaging for the inspection of films, sheets, and reflective materials, supporting surface inspection, visual inspection and dimensional measurement applications.

  • IDC (Industrial Digital Contact Image Sensor) series

Features Applications System Structure Product Lineup & Specifications Image Examples

Features

Applies to

All Models

Space-saving Line Scan Camera design

  • Integrated illumination, optics, and sensor
  • Retrofit-ready for space-constrained inspection
  • Ideal for dual-side surface inspection

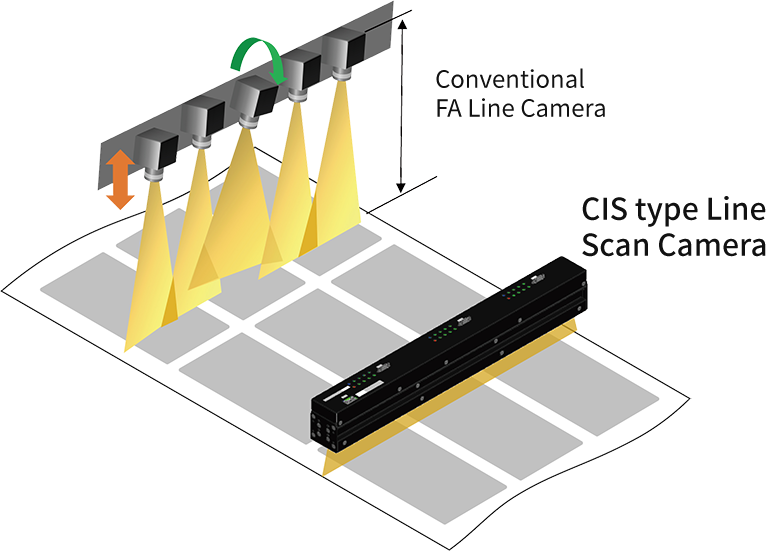

Structure diagram of the CIS type Line Scan Camera with integrated light source, lens and sensor for space-saving installation

Applies to

All Models

True 1:1 Imaging with Minimal Distortion

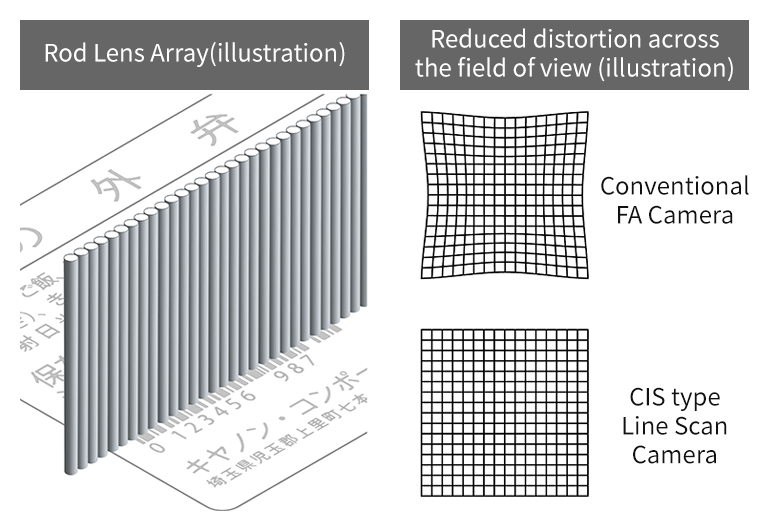

Rod Lens Array enabling 1:1 imaging with reduced distortion
  • Rod Lens Array for true 1:1 imaging
  • Low distortion with reduced edge distortion
  • Ideal for dimensional measurement

Applies to

All Models

Easy Setup

  • Integrated design reduces optical adjustment and installation time
  • Supports up to 1,300mm width with a single CIS-based Line Scan Camera

  • CIS type Line Scan Camera Easy Setup
    (Watch the Video on YouTube)

Applies to

IDCCFC-659/943/1318

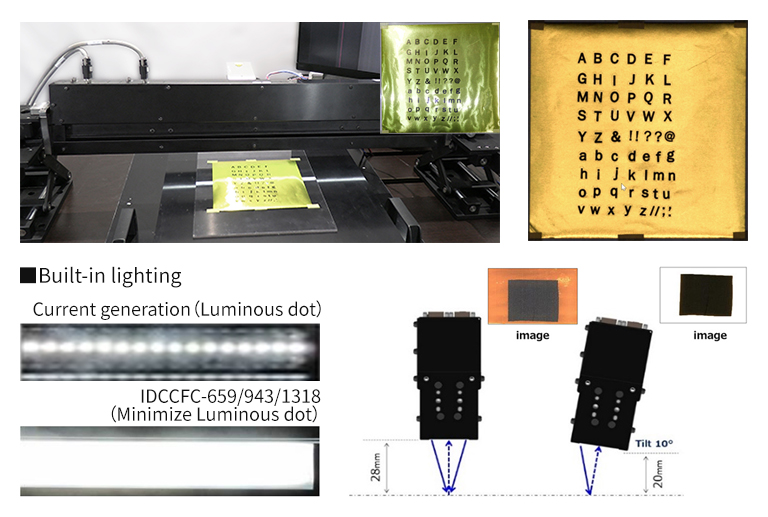

Built-in Diffuse Illumination for Glossy Materials

Built-in diffuse illumination reducing glare on glossy materials (comparison)
  • Diffuse illumination reduces glare and brightness variation
  • Reduced reflection enables stable inspection imaging
  • Ideal for inspection of reflective materials such as metals and films

Applies to

All Models

Long Working Distance

  • Design to ensure an adequate working distance
  • Reduced risk of contact and collision for stable operation
  • Easy cleaning and improve maintainability

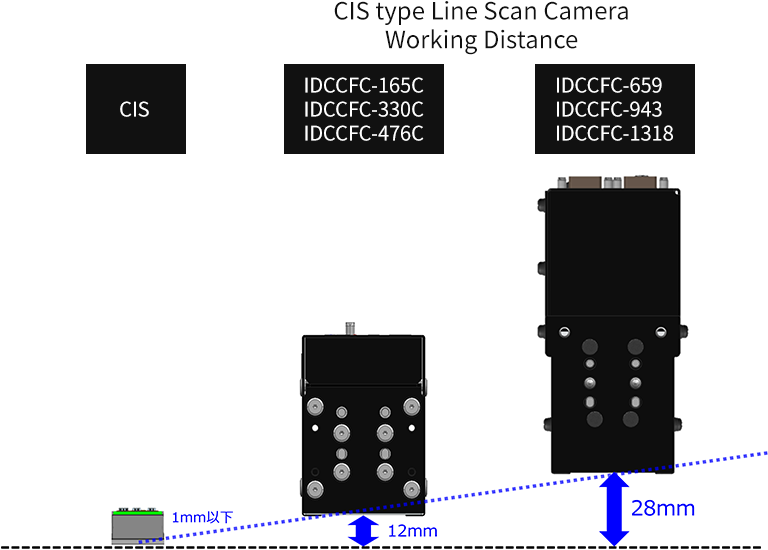

Comparison of the 12mm working distance for office-use CIS and IDCCFC-165C/330C/476C versus the 28mm working distance for IDCCFC-659/943/1318

Applications

IDCCFC-165C
IDCCFC-330C
IDCCFC-476C

  • Print quality
  • Film
  • Metal surface
  • Textile
  • PWB
  • Special ink
  • Measurement

IDCCFC-659
IDCCFC-943
IDCCFC-1318

  • Print quality
  • Film
  • Metal surface
  • Textile
  • PWB
  • Special ink
  • Measurement
  • Wafer
  • Reflective material
  • Electrode sheet
Application examples
Example of capture image

System Structure

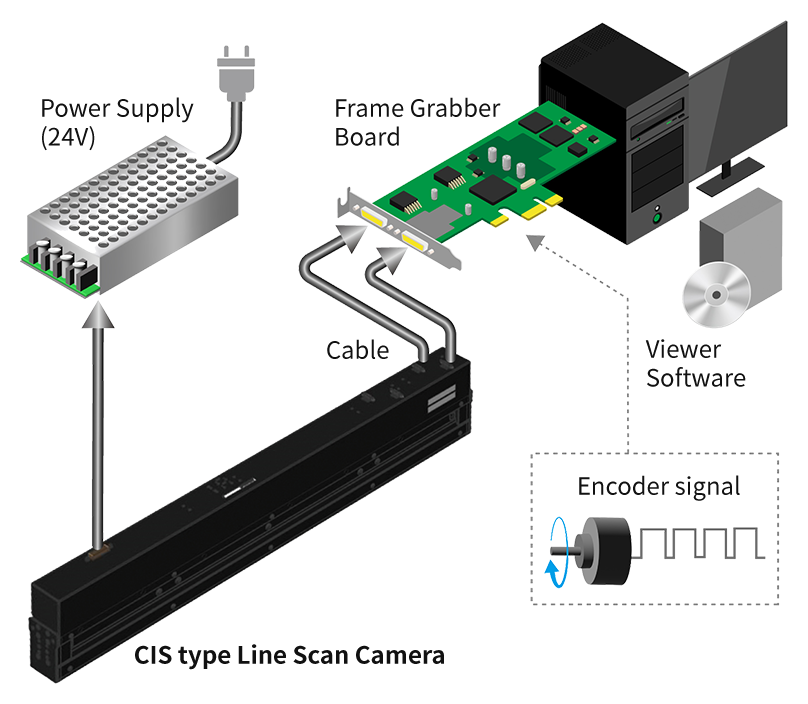

System structure diagram: 24V power supply, frame grabber board, cable, viewer software and encoder signal for the CIS type Line Scan Camera
Product Frame grabber board
IDCCFC-165C Base 1ch
IDCCFC-330C Base 2ch
IDCCFC-476C Base 2ch ×2
Base 4ch
IDCCFC-659 Base 2ch
Base 4ch
Medium 2ch
▼High Speed
Base 2ch ×2
Base 4ch
IDCCFC-943
IDCCFC-1318		 Base 2ch ×2
Base 4ch
Medium 2ch ×2
▼High Speed
Base 4ch ×2

※Please prepare a frame grabber board that supports the Camera Link format.

Product Lineup & Specifications

Product IDCCFC-659 IDCCFC-943 IDCCFC-1318
Outline

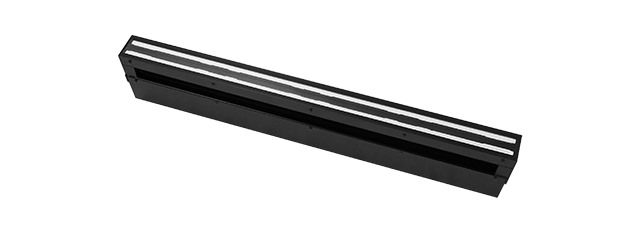

Appearance of IDCCFC-659

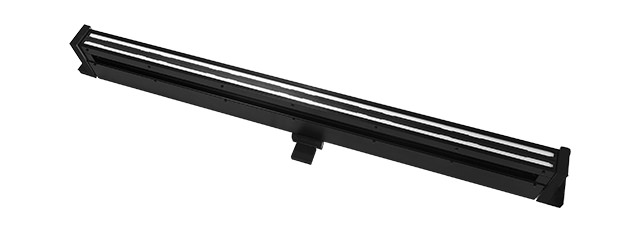

Appearance of IDCCFC-943

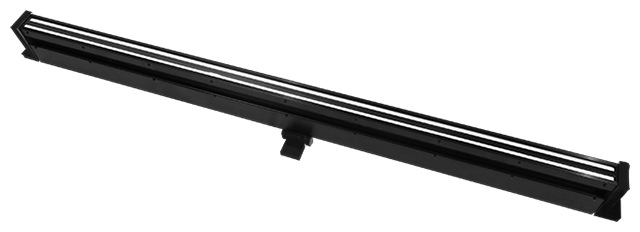

Appearance of IDCCFC-1318
Scan width 658.8mm 942.6mm 1317.6mm
Resolution 600/300/200/150 dpi
  • (Color & mono mode,resolution switchable)
Number of Video Output Cables 2/4 3/6 4/8
Power supply Sensor：24V 1　Illumination：24V 1 Sensor：24V 2　Illumination：24V 2
Working Distance 28mm
Scan speed
(Color / mono)

Base1ch.Medium
【600dpi】95μs/line (27m/min)　【300dpi】48μs/line (106m/min)　【200dpi】32μs/line (238m/min) 【150dpi】48μs/line (213m/min)

Base2ch
【600dpi】71μs/line (35m/min)　【300dpi】39μs/line (132m/min)　【200dpi】28μs/line (276m/min)　【150dpi】39μs/line (264m/min)
Outline (mm)
※1 Excl. Protrusions
※2 Incl. Attachment		 W683 x H118 x D56 (※1) W1102 x H160 x D146 (※2) W1432 x H160 x D146 (※2)
Weight 2.6kg 5.2kg 6.4kg

※Please prepare a frame grabber board that supports the Camera Link format.

Product IDCCFC-165C IDCCFC-330C IDCCFC-476C
Outline IDCCFC-165C IDCCFC-330C IDCCFC-476C
Scan width 164.6mm 329.3mm 475.8mm
Resolution 600/300/200/150 dpi
（Color & mono mode,resolution switchable）
Number of Video Output Cables 1 2 3
Power supply Sensor：5V 1　Illumination：24V 1
Working Distance 12mm
Scan speed
（Color / mono） 		【600dpi】71μs/Line（36m/min）
【300dpi】39μs/Line（132m/min）
【200dpi】28μs/Line（276m/min）
【150dpi】39μs/Line（264m/min）
Outline（mm）
※ Excl. Protrusions		 W188 H70 D55 W353 H70 D53 W500 H70 D53
Weight 0.6kg 1.8kg 2.5kg

※Contact us regarding products with CE marking.
※Please prepare a frame grabber board that supports the Camera Link format.

Characteristics (reference data)

Graph
Depth of field

※ Depth of field and spectral sensitivity data are for reference only.
