IDC (Industrial Digital Contact Image Sensor) series Canon Components, Inc. has been producing Contact Image Sensors for consumer products for many years, which is a key part of Image reading devices. IDC series are high spec and high quality, Contact Image Sensor specially designed and developed for the image inspection industry.

Features

CIS type line scan camera working Distance
CIS type line scan camera

Characteristics (reference data)

Characteristics
Deps of Focus(image)

※ Depth Of Focus & Spectrum response data value are for reference

Usage

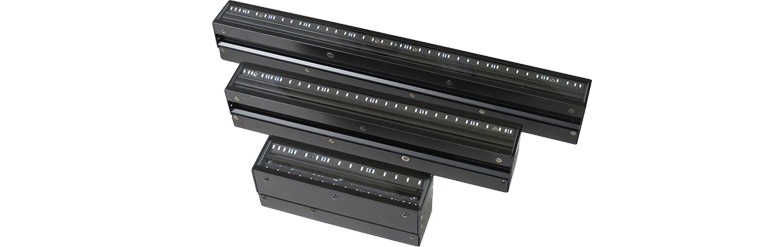

IDCCFC-165C
IDCCFC-330C
IDCCFC-476C

  • Print quality
  • Film
  • Surface
  • Textile
  • PWB
  • Special ink
  • Measurement

New

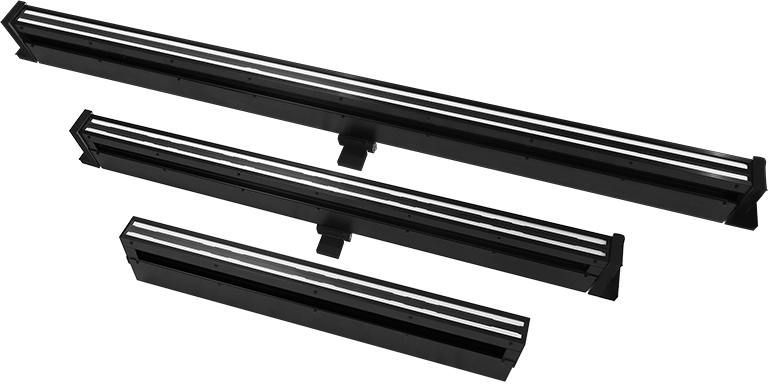

IDCCFC-659
IDCCFC-943
IDCCFC-1318

  • Print quality
  • Film
  • Surface
  • Textile
  • PWB
  • Special ink
  • Measurement
  • Wafer
  • Glossy surface
capture image
Example of capture image

System structure

System structure

Product line up and spec

Series Product Sensor chip Resolutions
(dpi)		 Effective Scanning length
(mm)		 Sensor Elements
(pixels)		 Clock frequency
(MHz)		 Storage time
(μs/Line)		 Power supply
( V )		 Other
165mm IDCCFC-165C CMOS 600 164.6 3,888×3
(RGB) 		20 71 Sensor:5
Illumination:24
330mm IDCCFC-330C CMOS 600 329.3 7,776×3
(RGB)		 20 71 Sensor:5
Illumination:24
476mm IDCCFC-476C CMOS 600 475.8 11,232×3
(RGB)		 20 71 Sensor:5
Illumination:24
Product IDCCFC-165C IDCCFC-330C IDCCFC-476C
Outline IDCCFC-165C IDCCFC-330C IDCCFC-476C
Scan width 164.6ｍｍ 329.3ｍｍ 475.8ｍｍ
Resolution 600/300/200/150 dpi
（Color & mono mode,resolution switchable）
Video Output Cable 1 2 3
Power supply Sensor：5V 1　Illumination：24V 1
Working Distance 12mm
Scan speed
（Color / mono） 		【600dpi】 71μs/Line（36m/min）
【300dpi】 39μs/Line（132m/min）
【200dpi】 28μs/Line（276m/min）
【150dpi】 39μs/Line（264m/min）
Outline（mm）
※ Excl. Protrusions		 W188 H70 D55 W353 H70 D53 W500 H70 D53
Weight 0.6kg 1.8kg 2.5kg

※Contact us regarding products with CE marking.
※Please prepare a frame grabber board that supports the Camera Link format.
