Industrial Line Scan Cameras for Surface Inspection Applications

＜ CIS type
Line Scan Cameras Compact type
Line Scan Cameras

Compact type Line Scan Cameras

Product Lineup and Specs
Catalog / Outline
Instruction Manual (for authorized personnel only)
FAQs
Case Studies
Contact Us (Inquiry Form)

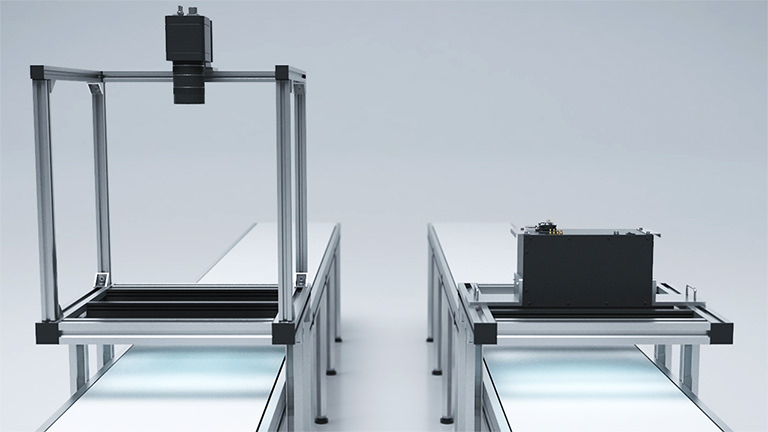

Compact type Line Scan Camera installed on a gantry

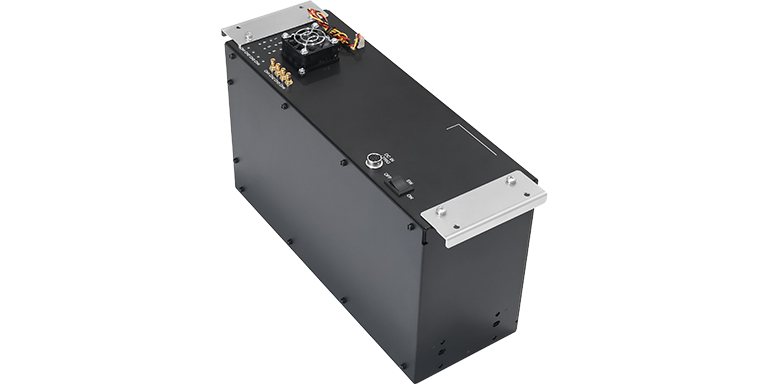

Compact type Line Scan Camera IRC350N-8K product photo

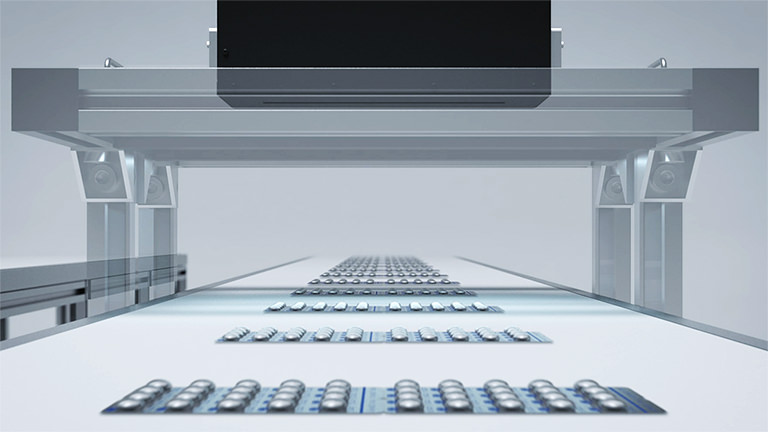

Real-world operation on a production line

Hybrid Line Scan Camera with
FA level Depth of Field and CIS-Based Easy Integration

Compact type Line Scan Cameras combine the deep depth of field of FA line scan cameras with the easy installation of CIS-based designs.
They enable stable surface inspection of flat and uneven objects, support retrofit integration and reduce installation effort through a simplified optical design.

Line scan imaging captures images continuously in sync with object movement, enabling efficient inspection over wide areas.

Powered by Canon Components’ proprietary technology, these cameras feature an integrated structure with built-in optics and sensors, delivering a compact and easy-to-use solution.

  • Industrial Surface Inspection Compact type Line Scan Camera IRC350N-8K
    Product Overview Video

Features Applications System Structure Product Lineup & Specifications

Features

Space-Efficient Design

  • Compact type Line Scan Camera with an integrated lens and sensor design for a space-efficient form factor
  • Significantly reduces equipment footprint compared to conventional FA line scan cameras, supporting equipment downsizing and high-density system layouts
  • Supports retrofit installation in space-constrained environments, enabling flexible integration with minimal design changes

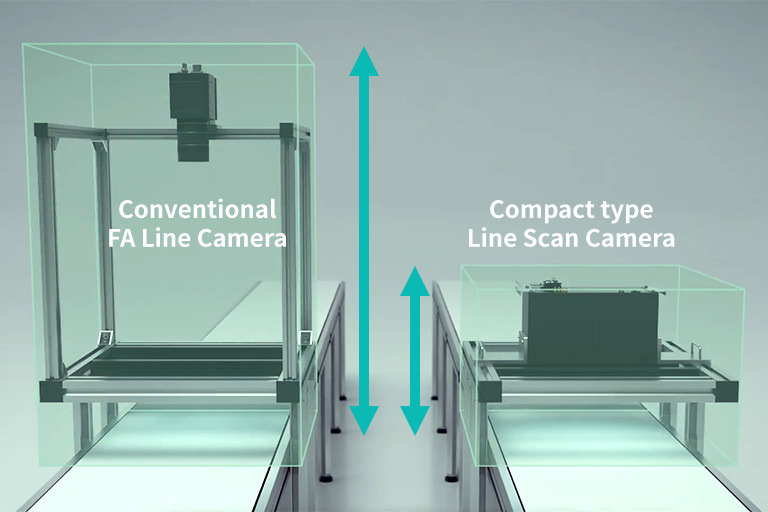

Installation footprint comparison between a conventional FA line camera and a Compact type Line Scan Camera

Deep Depth of Field for Uneven Surfaces with Long Working Distance

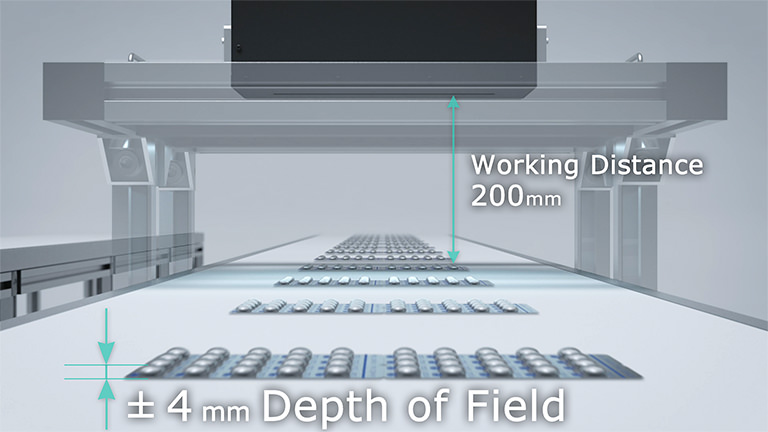

Diagram showing 200mm Working Distance and ±4mm Depth of Field
  • ±4mm※ Depth of Field enables high-precision surface inspection of flat and uneven objects
  • Long 200mm Working Distance reduces the risk of interference with transport systems and workpieces
  • Provides flexibility in lighting configuration for optimized inspection

※@300dpi

Easy Setup

  • Built-in lens design eliminates optical alignment, significantly simplifying system setup
  • Start imaging with minimal setup – lighting setup and height adjustment only
  • Contributes to minimizing system downtime

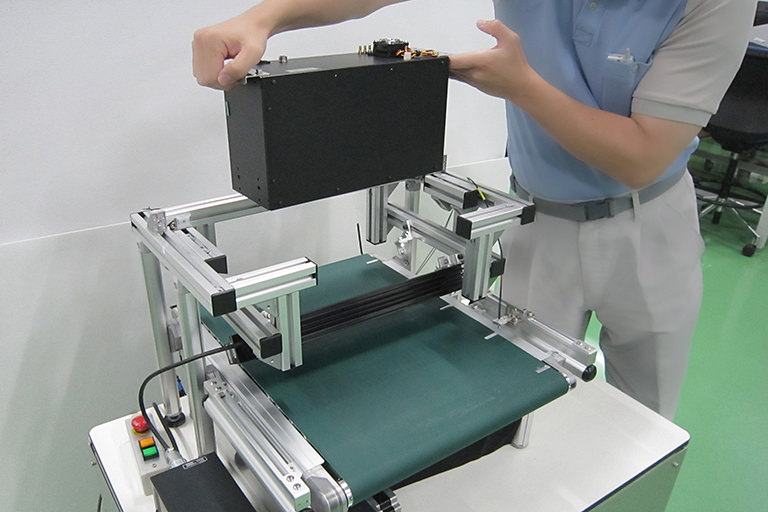

Unit being installed on a gantry

Applicable to Dual-Side Inspection

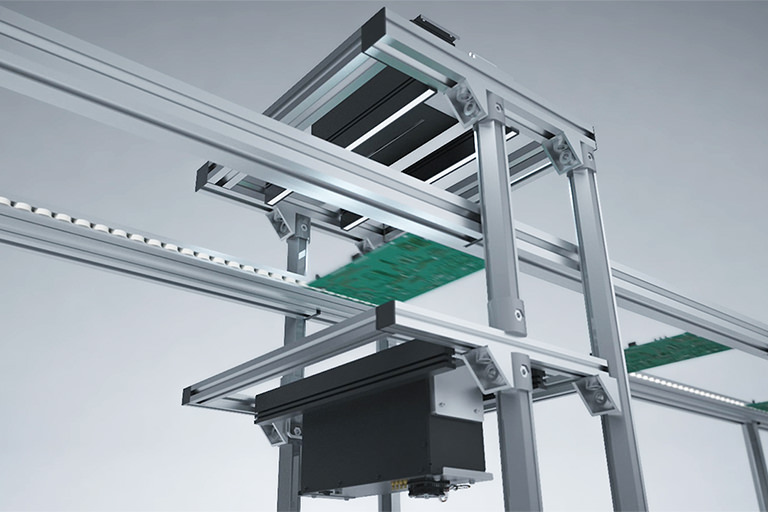

Top and bottom installation for dual-side board inspection
  • Dual-side inspection with conventional FA Line Scan Cameras may require major modifications to the transport system
  • Compact type Line Scan Cameras enable space-saving dual-side inspection with top and bottom installation, supporting retrofit integration into existing production lines

Applications

Uneven Object

  • PWB
  • Blister
  • Bottle Surface
  • Food Product

Fluttering, Unstable Objects

  • Film
  • WEB
  • Textile
  • Document

Material

  • Metal
  • Glass
Application examples: PWB, IC sample, water bottle and other inspection targets

System Structure

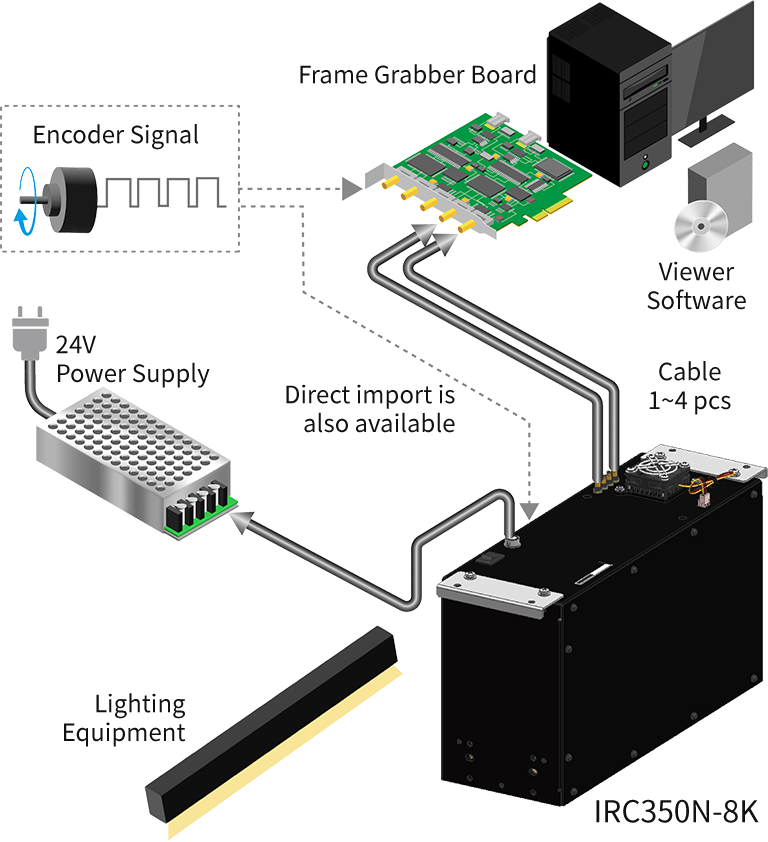

System structure diagram: encoder signal, frame grabber board, viewer software, 24V power supply, direct input, 1-4 coaxial cables, illumination unit and IRC350N-8K connections

・A frame grabber board that supports the CoaXPress format is required.

Product Lineup & Specifications

  IRC350N-8K
Outline IRC350N-8K outline photo
Effective Imaging Width 350mm
Sensor Elements (Pixels) 8,192
(Selectable 8,192/4,096/2,048)
Optical Resolution 600dpi equivalent
(Scanning Width 350mm, Sensor Elements 8,192pixels)
Capture Mode Color & Monochrome (Selectable)
Pixel Array Trilinear
Max Line Rate 60kHz CXP-6 (6.25Gbps) x 4ch
Working Distance 200mm
Depth of Field ±4.0mm @300dpi
Power Supply Input DC 24V
Outline Dimension W356 x H201 x D115mm
(Excl. protrusion, Incl. handle parts & fan)
Weight 6.0kg

・A frame grabber board that supports the CoaXPress format is required.
