Product line up and spec

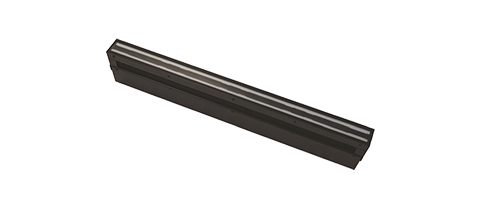

Product	IDCCFC-659	IDCCFC-943	IDCCFC-1318
Outline
Scan width	658.8mm	942.6mm	1317.6mm
Resolution	600/300/200/150 dpi (Color & mono mode,resolution switchable)
Out put I/F	Camera Link　Base/Medium configuration-compliant (Camera Link is a trademark of A3.)
Port (Cable)	Base1ch：2 Base2ch：4 Medium：4	Base1ch：3 Base2ch：6 Medium：6	Base1ch：4 Base2ch：8 Medium：8
Power supply	Sensor：24V 1　Illumination：24V 1	Sensor：24V 2　Illumination：24V 2
Working Distance	28mm
Scan speed (Color / mono)	Base1ch.Medium 【600dpi】93μs/line (27m/min)　【300dpi】51μs/line (100m/min)　【200dpi】37μs/line (206m/min) 【150dpi】51μs/line (200m/min) Base2ch 【600dpi】71μs/line (36m/min)　【300dpi】38μs/line (132m/min)　【200dpi】28μs/line (276m/min)　【150dpi】38μs/line (264m/min)
Outline (mm) ※1 Excl. Protrusions ※2 Incl. Attachment	W683 x H118 x D56 (※1)	W1102 x H160 x D146 (※2)	W1431 x H160 x D146 (※2)
Weight	2.6kg	5.2kg	6.4kg

※ Contents and specifications may change without notice
